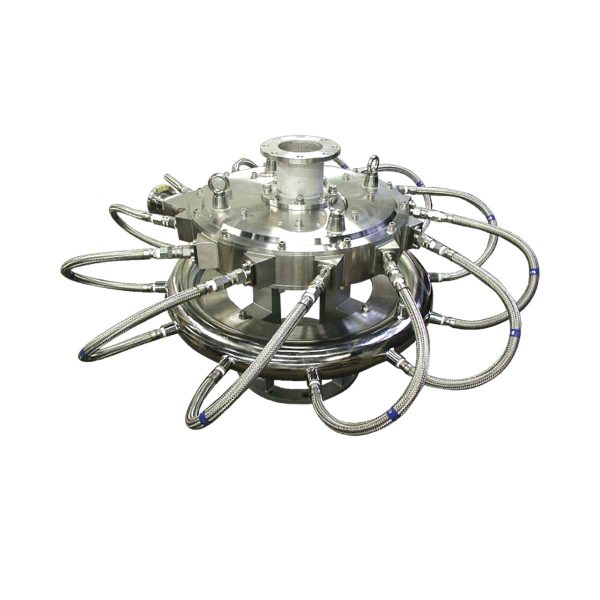

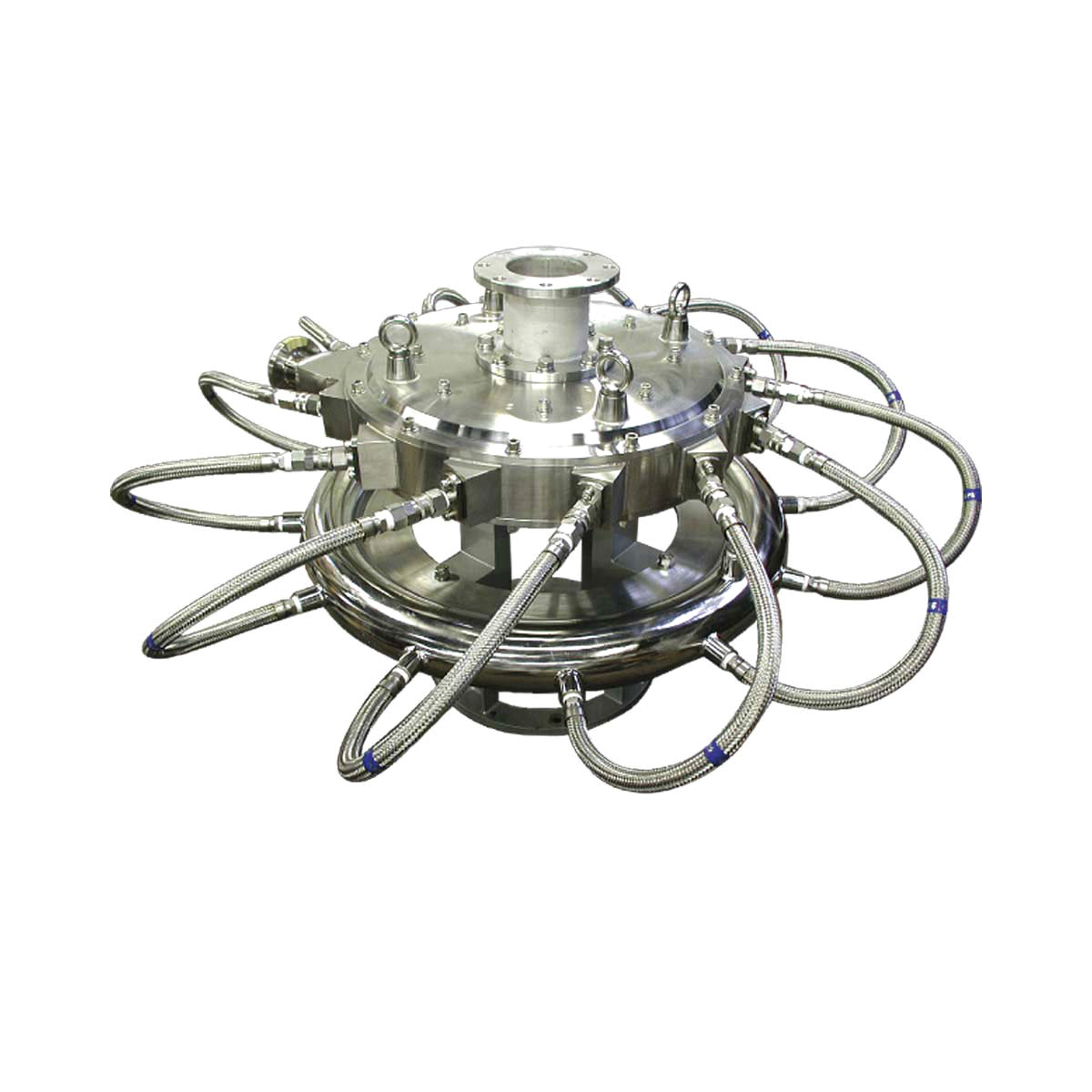

Spiral Jet Mill
How It Works

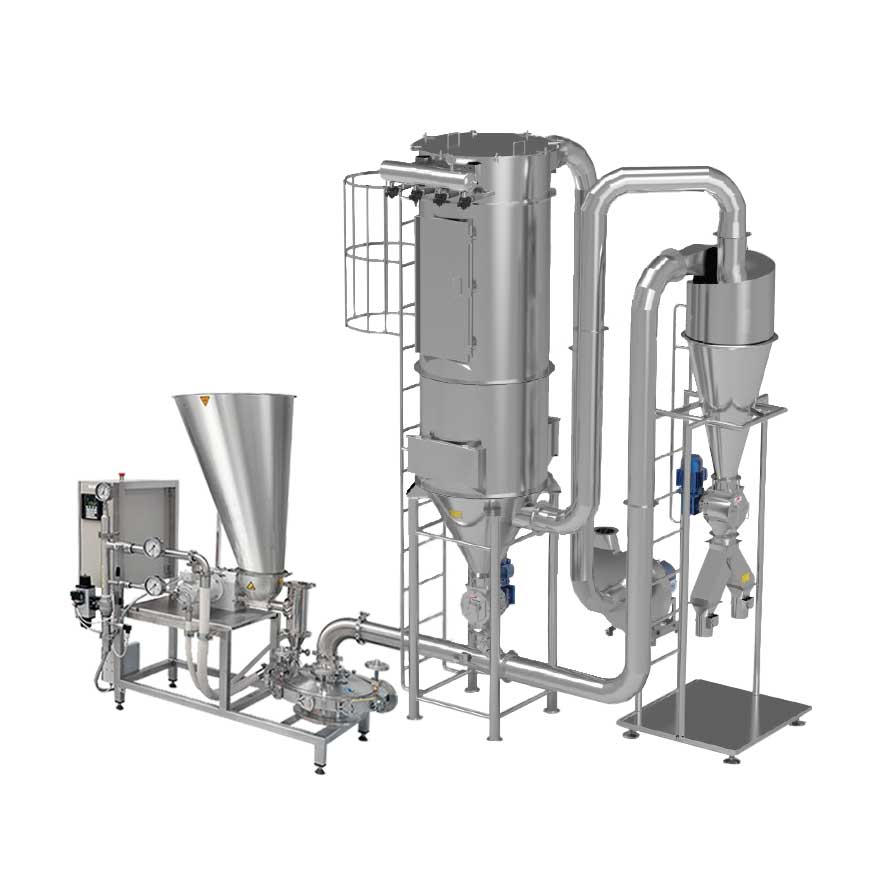

High-purity raw materials are drawn into the flat chamber via negative pressure. Particles undergo supersonic self-collisions driven by airflow, eliminating mechanical wear. As fineness increases, the centripetal force diminishes, allowing qualified micro-powders to move toward the center for precise cyclone collection.
Performance Features
High-Purity & Versatile Adaptability
Ideal for dry grinding of materials under Mohs 9. Specifically addressing the stringent purity needs of Quartz & Silica Powder, this process prevents metal contamination, providing reliable ultrafine solutions for electronic and aerospace grade powders.
Cold & Media-Free Micronization
Supports constant or low-temperature, media-free micronization via self-grinding. It preserves the original physicochemical properties and interfacial activity of Quartz & Silica Powder, making it the premier choice for heat-sensitive or oxidizable high-tech additives.
Flexible Sizing & Narrow PSD Control
Achieves precise sizing from D50 = 2–100μm with a narrow particle size distribution (PSD) and zero oversized particles. The non-rotating parts design allows for rapid cleaning and process switching, significantly boosting the efficiency of fine production.
Robust Structure & Electronic-Grade Options
The CNC-machined single-plate main unit ensures exceptional durability with a weld-free structure. Optional wear-resistant ceramic linings or CIP functions are available to meet the high standards of the electronics and semiconductor sectors for equipment longevity and clean production.
Technical Parameters
| Model Series: JSJM | 01 | 02 | 03 | 06 | 10 | 20 | 30 | 40 | 60 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Feeding size (mm) | <1 | <1 | <1 | <1 | <1 | <2 | <2 | <2 | <2 | <2 | <2 |
| Particle size (D97: μm) | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 | 5~45 |
| Processing capacity (kg/h) | 0.02~0.1 | — | 1~10 | 5~30 | 10~20 | 50~500 | 100~800 | 200~1000 | 500~2000 | 1000~3000 | 4000~6000 |
| Compressed gas consumption (m³/min) | 1 | — | 3 | 6 | 10 | 20 | 30 | 40 | 60 | 80 | 100 |
| Compressed air pressure (Mpa) | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 |
| Number of nozzles | 5 | 4 | 6 | 6 | 8 | 12 | 16 | — | — | — | — |
